High Speed Milling Center

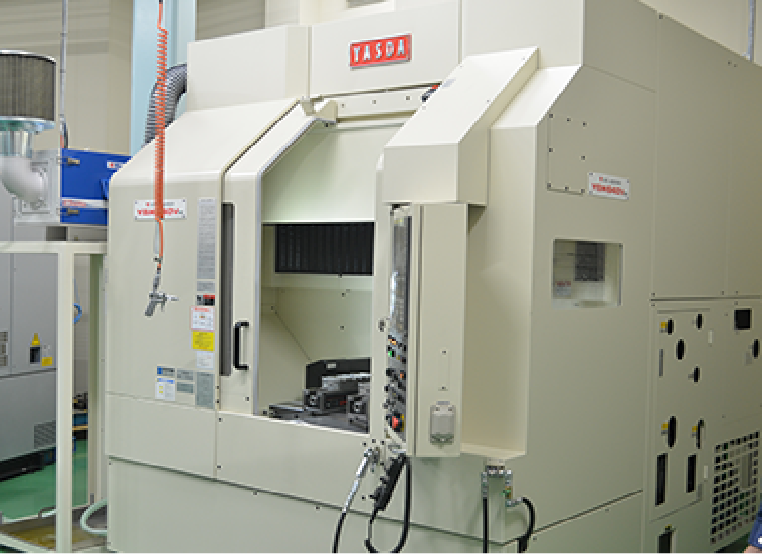

YASDA YBM 950V Ver.Ⅳ
|
Equipment name |
CNC machining center |
| Equipment manufactory | YASDA |
| Device model |
YBM 950V Ⅳ |
| Spindle speed |
24000min |
| Processing Travel(mm) | 950*500*350 |
| Precision | ±2 µm |
| Parts processing finish | Ra0.1μm Max |
| quantity | 2 Sets |
YASDA YBM 9150V Ver.Ⅱ
|
Equipment name |
CNC machining center |
| Equipment manufactory | YASDA |
| Device model |
YBM 9150V Ⅱ |
| Spindle speed |
24000min |
| Processing Travel(mm) | 1500*900*450 |
| Precision | ±2 µm |
| Parts processing finish | Ra0.1μm Max |
| quantity | 1 Set |
YASDA YBM 640V Ver.Ⅳ
|
Equipment name |
CNC machining center |
| Equipment manufactory | YASDA |
| Device model |
YBM 640V Ⅳ |
| Spindle speed |
30000min |
| Processing Travel(mm) | 600*400*350 |
| Precision | ±2 µm |
| Parts processing finish | Ra0.1μm Max |
| quantity | 2 Sets |
YASDA 5AXES H30i
|
Equipment name |
CNC machining center |
| Equipment manufactory | YASDA |
| Device model |
H30i series |
| Spindle speed |
12000min |
| Processing Travel(mm) | 650*560*560 |
| Precision | ±5 µm |
| Parts processing finish | Ra0.1μm Max |
| quantity | 1 set |
Makino V33i
|
Equipment name |
CNC machining center |
| Equipment manufactory | Makino |
| Device model |
v33i series |
| Spindle speed |
20000min |
| Processing Travel(mm) | 650*450*350 |
| Precision | ±5 µm |
| Parts processing finish | Ra0.1μm Max |
| quantity | 20 sets |
DMG NHC6300
|
Equipment name |
CNC machining center |
| Equipment manufactory | DMG |
| Device model |
NHC6300 series |
| Spindle speed |
12000min |
| Processing Travel(mm) | 1050*900*1300 |
| Precision | ±5 µm |
| Parts processing finish | Ra0.4μm Max |
| quantity | 2 sets |
Makino a61nx
|
Equipment name |
CNC machining center |
| Equipment manufactory | Makino |
| Device model |
a61nx series |
| Spindle speed |
12000min |
| Processing Travel(mm) | 730*650*800 |
| Precision | ±5 µm |
| Parts processing finish | Ra0.4μm Max |
| quantity | 5 sets |
Makino a51nx
|
Equipment name |
CNC machining center |
| Equipment manufactory | Makino |
| Device model |
a51nx series |
| Spindle speed |
12000min |
| Processing Travel(mm) | 560*640*640 |
| Precision | ±5 µm |
| Parts processing finish | Ra0.4μm Max |
| quantity | 20 sets |
High Precision Aspheric and Free-form Surface Grinder
|
Equipment name |
High Precision Aspheric and Free-form Surface Grinder |
| Equipment manufactory | Moore |
| Device model |
250UPL V2 series |
| Processing Travel(mm) | X200*Z200*Y100 |
| Precision | PV＜0.06μm |
| Parts processing finish | 0.3 ~ 0.5 nm |
| quantity | 8 sets |
High Precision Aspheric and Free-form Surface Grinder
|
Equipment name |
High Precision Aspheric and Free-form Surface Grinder |
| Equipment manufactory | innolite |
| Device model |
IL600series |
| Processing Travel(mm) | X600*Z*400*Y250 |
| Precision | < 0.1μm |
| Parts processing finish | < 1.5um |
| quantity | 1sets |
Precision Micro Machining Center
|
Equipment name |
Precision Micro Machining Center |
| Equipment manufactory | ROKU-ROKU |
|
Device model |
HSK-E25series |
| Processing Travel(mm) | X450*Y*350*Z200 |
| Spindle Speed | 60000 rpm |
| Precision | ±1µm |
| quantity | 6 sets |
Wire-cut EDM
Seibu Wire-cut EDM
|
Equipment name |
Wire-cut EDM |
| Equipment manufactory | Seibu |
| Device model |
MM50B Series |
| Processing Travel(mm) | 800*550 * 270 |
| Precision | ±2 µm |
| Parts processing finish | Ra0.1μm Max |
| quantity | 16 Sets |
Oil Wire-cut EDM
|
Equipment name |
Wire-cut EDM |
| Equipment manufactory | AgieCharmilles |
| Device model |
CUT 2000S Series |
| Processing Travel(mm) | 750*550 * 250 |
| Precision | ±1 µm |
| Parts processing finish | Ra0.1μm Max |
| quantity | 2 Sets |
Die-sinker EDM
AgieCharmilles FORM P350
|
Equipment name |
Die-sinker EDM |
| Equipment manufactory | AgieCharmilles |
| Device model |
FORM P350 Series |
| Processing Travel(mm) | 350 *250 * 300 |
| Precision | ±2 µm |
| Parts processing finish | Ra0.08μm Min |
| quantity | 8 Sets |
Mitsubishi EA8PV
Equipment name
Die-sinker EDM
Equipment manufactory
Mitsubishi
Device model
EA8PV Series
Processing Travel(mm)
300 * 250 * 250
Precision
±2 µm
Parts processing finish
Ra0.08μm Min
quantity
3 Sets
Makino EDGE3i
|
Equipment name |
Die-sinker EDM |
| Equipment manufactory | Makino |
| Device model |
EDGE3i Series |
| Processing Travel(mm) | 450 * 300 * 320 |
| Precision | ±2 µm |
| Parts processing finish | Ra0.08μm Min |
| quantity | 6 Sets |
SODICK AP1
|
Equipment name |
Die-sinker EDM |
| Equipment manufactory | SODICK |
| Device model |
AP1 Series |
| Processing Travel(mm) | 200 * 120 * 200 |
| Precision | ±2 µm |
| Parts processing finish | Ra0.05μm Min |
| quantity | 9 Sets |
Jig Grinder
HAUSER CNC Jig Grinding
Equipment name
CNC Jig Grinding
Equipment manufactory
HAUSER
Device model
50L Series
Spindle speed
8000~150000min
Processing Travel(mm)
1500*800*600
Precision
±1 µm
Parts processing finish
Ra0.05μm Min
quantity
1 Set
Moorer CNC Jig Grinding
Equipment name
CNC Jig Grinding
Equipment manufactory
Moorer
Device model
450P Series
Spindle speed
8000~150000min
Processing Travel(mm)
500*350*350
Precision
±1 µm
Parts processing finish
Ra0.05μm Min
quantity
2 Set
Hardinge CNC Jig Grinding
Equipment name
CNC Jig Grinding
Equipment manufactory
Hardinge
Device model
HAUSER2000 Series
Spindle speed
4000~150000min
Processing Travel(mm)
550*300*450
Precision
±1 µm
Parts processing finish
Roundness 0.5μm, cylindricity 0.8μm
quantity
2 Set
Profile Grinder/Precision Form Grinding
WADAI Profile Grinder
|
Equipment name |
Profile Grinder |
| Equipment manufactory | WADAI |
| Device model |
PGX-2500SP |
| Processing Travel(mm) | 160*100*100 |
| Precision | ±1 µm |
| Parts processing finish | Ra0.05μm Max |
| quantity | 8 Sets |
KURODA Surface Grinding
Equipment name
NC Surface Grinding
Equipment manufactory
KURODA
Device model
GS-64PFⅡ
Processing Travel(mm)
600*400*400
Precision
±0.5 µm
Parts processing finish
Ra0.05μm Max
quantity
1 Sets
AMADA Profile Grinder
|
Equipment name |
Profile Grinder |
| Equipment manufactory | AMADA |
| Device model |
GLS-C8 |
| Processing Travel(mm) | 120*100*100 |
| Precision | ±1 µm |
| Parts processing finish | Ra0.05μm Max |
| quantity | 4 Sets |
Okamoto Form Grinding
|
Equipment name |
Precision Form Grinding |
| Equipment manufactory | Okamoto |
| Device model |
ACC-350II |
| Processing Travel(mm) | 350*150*280 |
| Precision | ±1µm |
| Parts processing finish | Ra0.05μm Max |
| quantity | 20 Sets |
NC Precision surface grinding machine
|
Equipment name |
NC Precision surface grinding machine |
| Equipment manufactory | Okamoto |
| Device model |
UPG84CA1 |
| Processing Travel(mm) | 800*400*400 |
| Precision | ±1µm |
| Parts processing finish | Ra0.05μm Max |
| quantity | 1 Sets |
High Precision surface grinding machine
|
Equipment name |
High Precision surface grinding machine |
| Equipment manufactory | NAGASE |
| Device model |
SGS-75 |
| Processing Travel(mm) | 1000*540*490 |
| Precision | ±1µm |
| Parts processing finish | Ra0.05μm Max |
| quantity | 1 Sets |
Precision measuring equipment
Profile Projectors
|
Equipment name |
Profile Projectors |
| Equipment manufactory | NIKON |
| Device model |
V12B Series |
| Measuring range(mm) | 200*150*100mm |
| Measurement accuracy | ±2µm |
| Quantity | 8 Sets |
Measuring microscopes
|
Equipment name |
|
| Equipment manufactory | NIKON |
| Device model |
MM400 Series |
| Measuring range(mm) | 150*150*100 |
| Measurement accuracy | ±1µm |
| Quantity | 4 Sets |
Digital Microscope
Equipment name
Digital Microscope
Equipment manufactory
Keyence
Device model
VHX-3000 Series
Measuring range(mm)
150*100*50
Measurement accuracy
±0.1µm
Quantity
1 Set
Coordinate Measuring
|
Equipment name |
Coordinate Measuring |
| Equipment manufactory | Zeiss |
| Device model |
CONTURA G2 Series |
| Measuring range(mm) | 1200*100*600 |
| Measurement accuracy | ±0.1µm |
| Quantity | 1 Set |
Coordinate Measuring
|
Equipment name |
Coordinate Measuring |
| Equipment manufactory | ZEISS |
| Device model |
XENOS Series |
| Measuring range(mm) | 900*1500*700 |
| Measurement accuracy | ±0.1µm |
| Quantity | 1 Sets |
3D Optical Profilers
|
Equipment name |
3D Optical Profilers |
| Equipment manufactory | Zygo |
| Device model |
NewView 9000 Series |
| Measuring range(mm) | H89 * W150 * D150 |
| Measurement accuracy | RMS 0.008 nm |
| Quantity | 1 Sets |
Ultrahigh Accurate 3D Profilometer
|
Equipment name |
Ultrahigh Accurate 3D Profilometer |
| Equipment manufactory | Panasonic |
| Device model |
UA3P-4000 Series |
| Measuring range(mm) | 200* 200 * 50 |
| Measurement accuracy | ±0.05μm |
| Quantity | 6 Set |
High-precision lens eccentricity measurement device
|
Equipment name |
High-precision lens eccentricity measurement device |
| Equipment manufactory | Trioptics |
| Device model |
OptiCentric 3D Series |
| Measuring range(mm) | Φ0.5~400 |
| Measurement accuracy | Accuracy for non-spherical tilt measurement is 0.01μm, interfacial reflection measurement accuracy is <0.2μm, and center thickness surface sensing accuracy is <1μm. |
| Quantity | 2 Set |
